Free-Mo S Scale

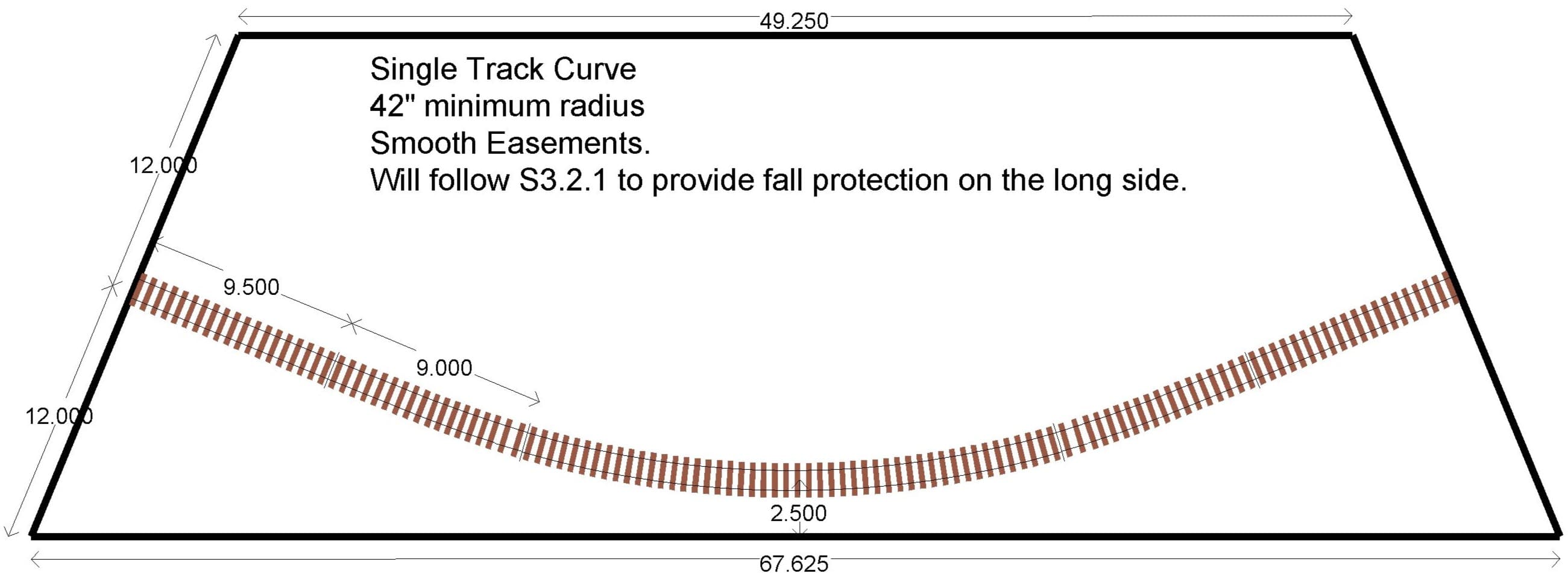

Single Track Curve

My single track curve modules will be simple scenery only modules at first. I plan to build 4 of these so we can bend the layout a full 180 degrees as needed. These all need to be exactly the same dimensions so that it could be possible, with some helper modules, to create a reverse loop with them.

Module Specifications

Type:

Single Track Curve Module

Length:

6 Feet

Width:

24 Inches

Track:

Tomalco Code 100 flex track

Radius:

42 inches minimum

Scenery:

Basic ground cover

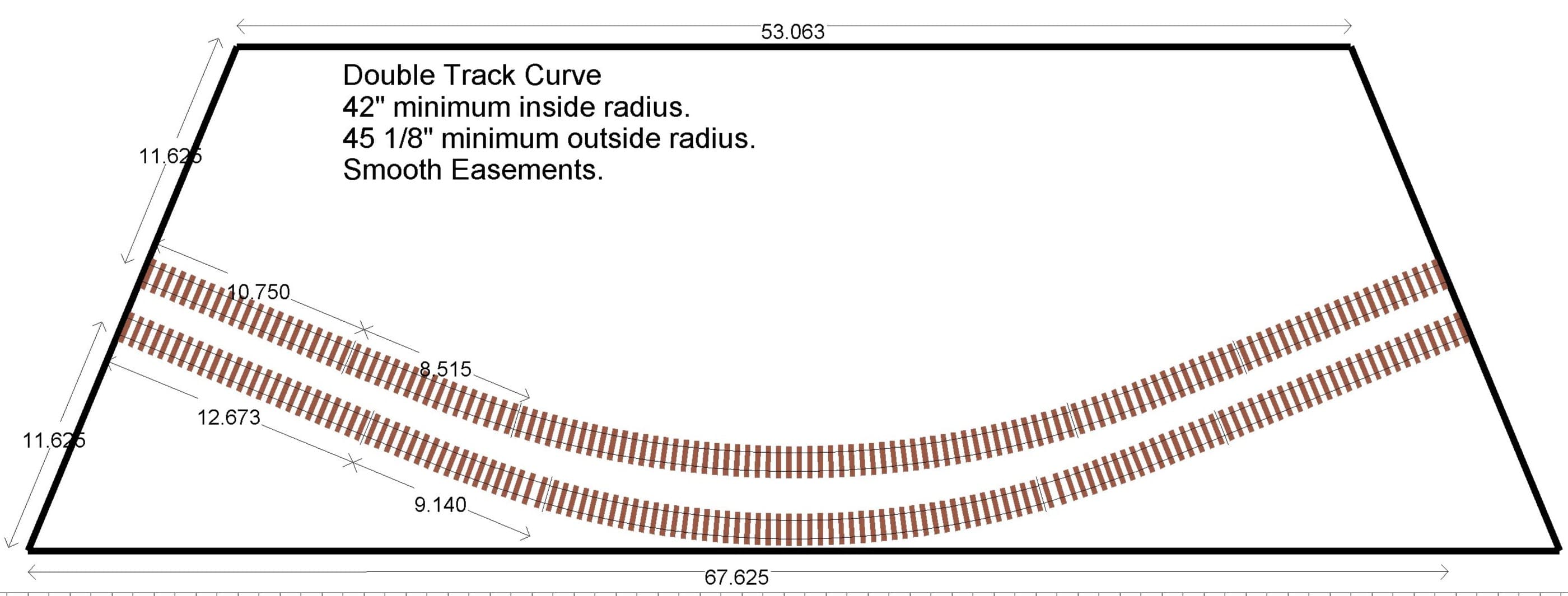

Double Track Curve

I am not currently planning any double track modules but I wanted to put together a plan in case someone else wants to build some. Unfortunately, geometry forces the outside curve very close to the edge (about 1 1/16 inch), so something will need to be done to protect trains during derailment. One suggestion would be to provide a clamp on scenery wedge for these modules. Otherwise a different shape module will be needed for double track curves.

Module Specifications

Type:

Double Track Curve Module

Length:

6 Feet

Width:

26 Inches

Track:

Tomalco Code 100 flex track

Radius:

42 inches minimum inside, 45 1/8 inches outside

Scenery:

Basic ground cover
