Chicago, Burlington & Quincy Zone 3 in La Crosse, WI

This module group built by Shane Lambert is based on the Chicago, Burlington & Quincy Zone 3 in La Crosse, WI. It will be built in at least 3 sections to incorporate as much of the area as I can. I hope to start on Phase 1 in early 2025 and have all three zones done by March, 2026. These modules will be built using Tomalco Flex Track and hand-built turnouts made using Fast Tracks jigs.

See all of the CB&Q Zone 3 Modules

West Avenue Branch

Phase 2 will focus on the area East of Heileman Brewery crossing West Avenue. This module is slightly longer. This phase will be 20 feet long in 5 foot sections. Construction of this phase is set to begin in late 2025.

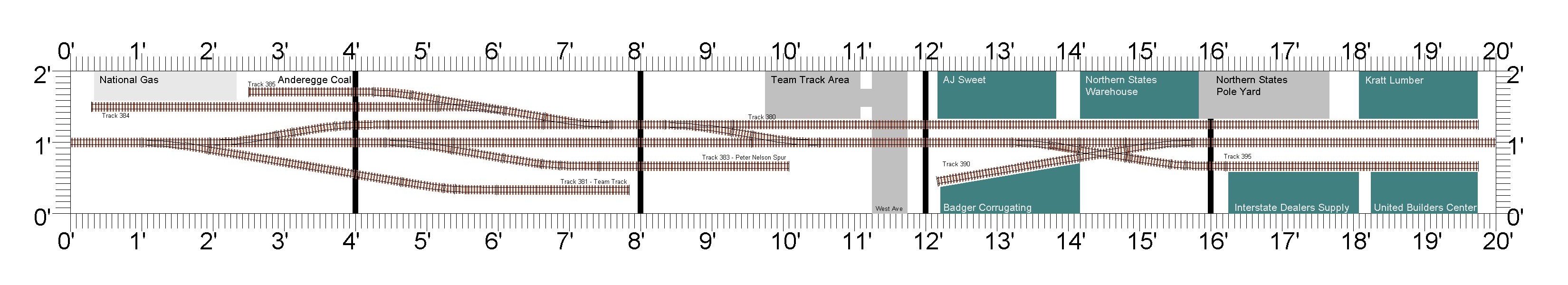

2nd Street in La Crosse, WIWest Avenue Branch - Click to Open in New Window

Module Specifications

Type:
Single Track Switching Puzzle
Length:
20 Feet
Width:
24 Inches
Track:
Tomalco Code 100 main line, Code 83 siding, Code 70 industry tracks
Turnouts:
Hand built #8 on main, #6 on siding, #6 on industry tracks using fast tracks jigs
Scenery:
Urban switching scene with a variety of buildings and details.

List of Industries

IndustryDescriptionSpots
Team Track - 381Team Track
  • 2 Box Cars for General Freight
  • 1 Flatcar for Tractors, Trucks, Lumber
Track 380Serving A.J. Sweet and Norther States Power
  • 1 Box Car for Groceries for A.J. Sweet
  • 1 Reefer for Produce for A.J. Sweet
  • 2 Box Cars for Supplies for Northern States Power
  • 2 Flatcars for Power Poles for Northern States Power
Anderegg Coal - Track 382Coal Dealer
  • 4 Hoppers for Coal
National Gas - Track 384Lumber Yard
  • 3 Tank Cars for Fuel and Oil
Badger Corrugating - Track 390Building Supplies
  • 3 Box Cars for Building Supplies
Badger Corrugating - Track 391Building Supplies
  • 3 Box Cars for Building Supplies
Track 395Serves Interstate Dealers Supply and United Building Center
  • 2 Box Cars for Building Supplies for Interstate Dealers Supply
  • 2 Box Cars for Building Supplies for United Building Center
Pepsi Cola Bottling - Track 397Bottling Plant
  • 3 Box Cars for Raw materials and shipping.
  • 2 Tank Cars for Liquid Sugar
